Dongguan Hongyu Automation Technology Co., Ltd.
 |
| Place of Origin: | China |
| Brand Name: | HONGYU |
| Certification: | CE |
| Model Number: | HYUV300DF |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 1200 |
| Delivery Time: | 5-8 days |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 set per month |
| Dying Style: | UV Curing Machine | Belt Size: | 300*1000MM |
|---|---|---|---|
| Height: | 100MM | Power: | 2KW |
| Size: | 1000*510*885MM | NM: | 200-450NM |
| High Light: | 2KW UV Curing Machine,Desktop UV Curing Machine,300MM Belt UV Dryer Machine |
||

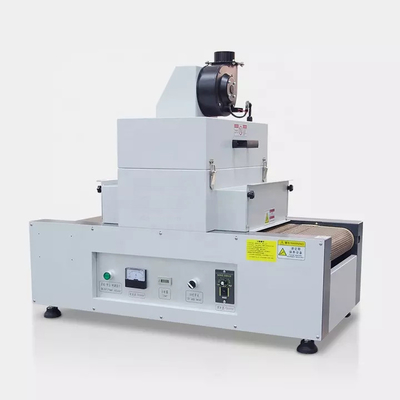

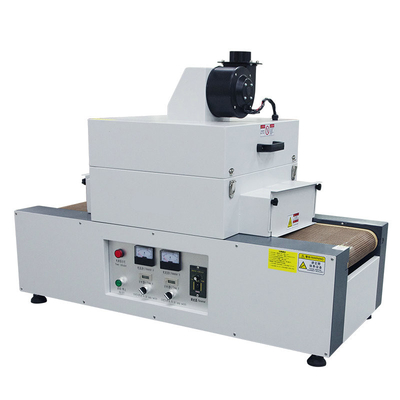

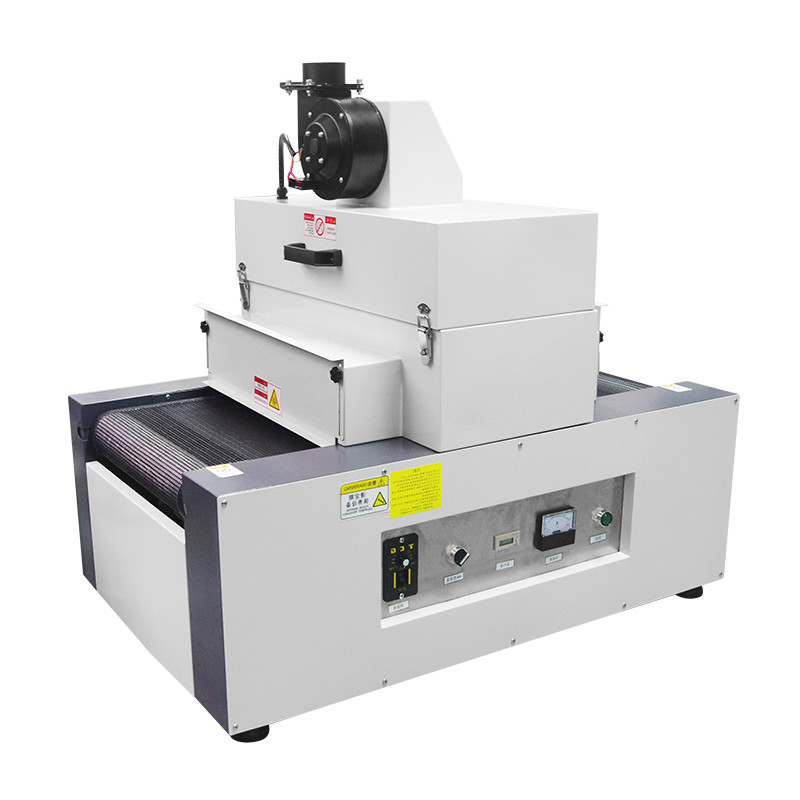

Small Desktop 2KW UV Curing Machine UV Dryer 300 belt size application:
Widely used in cell phone case, CD, membrane switch, electronic plastic shell surface UV paint coating; various UV coatings, IMD injection products curing ink; used in the curing of electronic components, LCD, sealed plastic terminals, mobile component adhesive, LCD and other adhesive and plastic components; the device small, light weight, well-made, easy to move.
Widely use to: flatbed Printing, screen printing, stickers trademark, metal signs, soft and hard PC, PVC, ABS, PS. Acrylic, glass, electronic components, single-sided circuit boards, ceramics, wood. Painting: the shiny wood surface coating, paper, floor tiles, PU synthetic leather polish and so on.
Small Desktop 2KW UV Curing Machine UV Dryer 300 belt size Parameter:
| Name | Parameter |
| Item | UV-300-1 |
| Power Source | A.C 220V |
| Feeding/Outer Length | 300mm |
| Working area | 500mm |
| Feeding Height | 0-90mm adjustable |
| Transfer Form | Belt conveyor |
| Belt Width | 300mm |
| Wavelength | 365nm |
| Transfer Speed | 1-7m/min adjustable |
| Transmission Type | Chain Drive |
| Drive motor | AC electronic governor 15W |
| ventilator | 120Wx 1 piece |
| UV Lamp | 1KW 300MMx 2 pieces |
| Lamp Usage | 24 hours continue using 600-800 |
| Decorative form | Spray |
| Plate material | cold Quality metal plate |
| Total Power | 2KW |
| Outer Dimension | L1200mmx W550mmx H950mm |
| Package size | 1270x 620x 1100mm |
| Gross Weight | 145kgs |
1. Instant dry, high production efficiency.
2. After drying make the surface achieve high hardness, high gloss, abrasion resistance, solvent effect.
3. Drive with roller transmission, frequency stepless speed regulation.
4. Conveyor offset prevention, to ensure smooth delivery.
5. High quality and efficient lamp, lamp room compulsory heat, extend lamp life, the protection of dried goods will not heat deformation.
6. Case body surface all spray, nice, corrosion-resistant.
